com.openinventor.inventor.draggers

Class SoTabBoxDragger

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.nodes.SoNode

com.openinventor.inventor.nodekits.SoBaseKit

com.openinventor.inventor.nodekits.SoInteractionKit

com.openinventor.inventor.draggers.SoDragger

com.openinventor.inventor.draggers.SoTabBoxDragger

All Implemented Interfaces:

SafeDisposable

public class SoTabBoxDragger
extends SoDragger

Cubic object you can translate and scale by dragging with the mouse. SoTabBoxDragger is a composite dragger shaped like a box. Inside it are six SoTabPlaneDraggers which the dragger positions and orients to form a cube. The operations available in an SoTabPlaneDragger (translation, 1D scaling and 2D scaling) are available on each face of the cube. Since they each move in their local space, the dragger may be easily translated or scaled in any direction.

Clicking and dragging a corner tab does a 2D scaling in the plane of the tab by scaling about the opposite corner of that face of the dragger.
Note: Holding the SHIFT key while dragging a corner tab forces uniform scaling.

Clicking and dragging an edge tab does 1D scaling about the opposite edge of that face.

Clicking and dragging a face does translation within the plane of the face. Although the face of the dragger is invisible (using the default dragger geometry) it is pickable.
Note: Holding the SHIFT key while dragging a face forces axis constrained dragging. The drag axis is determined by the initial drag direction.

As a composite dragger, this class makes sure that when one plane is dragged, the entire box moves together.

Each SoTabPlaneDragger tries to keep the small tabs a constant size in screen space. Every time a drag begins or ends, the size is automatically recalculated based on the viewing and modeling matrix. When the resizeHandles field is set to true (the default), the tab size is also recalculated during the render traversal if the view matrix has changed (usually because the camera position and/or orientation changed). The application can also force the tab size to be recomputed by calling the adjustScaleTabSize() method.

If the dragger becomes too small in one dimension to contain all three tabs (two corner tabs plus the edge tab), the middle (edge) tab will not be drawn. If the dragger becomes very small (or flat) in one dimension, it may not be possible for the user to resize using the tabs. One solution for this is to provide a "reset dragger" button in the application.

When dragging the translator part, press the <Shift> key and you can constrain motion to either the local x axis or the y axis . The direction is determined by your initial mouse gesture after pressing the key. Releasing the key removes the constraint.

As each sub-dragger is moved, the SoTabBoxDragger updates its scaleFactor and translation fields. As with all draggers, if you change a field the dragger will move to match the new settings.

Remember: This is not an SoTransform!. If you want to move other objects with this dragger, you can:

• Use an SoTabBoxManip, which is subclassed from SoTransform. It creates one of these draggers and uses it as the interface to change its fields.
• Use an SoROIManip, which is subclassed from SoROI, if your goal is to do volume rendering and interact with a region-of-interest. This is commonly used for medical volume data and seismic volume data.
• Use field-to-field connections to connect the fields of this dragger to those of any SoTransformation node.
• Use the standard dragger callbacks, see for example SoDragger.addValueChangedCallback.

You can change the parts in any instance of this dragger using setPart(). The default part geometries are defined as resources for this SoTabBoxDragger class. They are detailed below in the Dragger Resources section of the online reference page for this class. You can make your program use different default resources for the parts by copying the file $OIVHOME/data/draggerDefaults/tabBoxDragger.iv into your own directory, editing the file, and then setting the environment variable SO_DRAGGER_DIR to be a path to that directory.

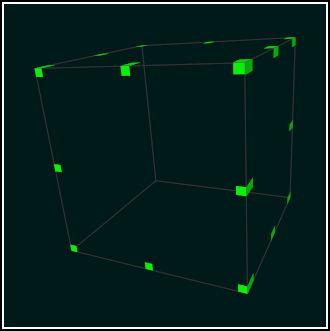

This dragger has both a default and a WYSIWYG version:

Default Dragger	WYSIWYG Dragger

See SoDragger for more information about using and customizing draggers, including code examples, using draggers in an immersive VR environment and using WYSIWYG draggers.

File format/default:

TabBoxDragger {

boundingBoxCaching	AUTO
renderCulling	AUTO
pickCulling	AUTO
isActive	false
resizeHandles	true
translation	0 0 0
scaleFactor	1 1 1
tabPixelSize	8
callbackList	NULL
surroundScale	NULL
tabPlane1	TabPlaneDragger {
}
tabPlane2	TabPlaneDragger {
}
tabPlane3	TabPlaneDragger {
}
tabPlane4	TabPlaneDragger {
}
tabPlane5	TabPlaneDragger {
}
tabPlane6	TabPlaneDragger {
}
boxGeom	<tabBoxBoxGeom resource>
tabPlane1.translator	<tabBoxTranslator resource>
tabPlane2.translator	<tabBoxTranslator resource>
tabPlane3.translator	<tabBoxTranslator resource>
tabPlane4.translator	<tabBoxTranslator resource>
tabPlane5.translator	<tabBoxTranslator resource>
tabPlane6.translator	<tabBoxTranslator resource>
tabPlane1.scaleTabMaterial	<tabBoxScaleTabMaterial resource>
tabPlane2.scaleTabMaterial	<tabBoxScaleTabMaterial resource>
tabPlane3.scaleTabMaterial	<tabBoxScaleTabMaterial resource>
tabPlane4.scaleTabMaterial	<tabBoxScaleTabMaterial resource>
tabPlane5.scaleTabMaterial	<tabBoxScaleTabMaterial resource>
tabPlane6.scaleTabMaterial	<tabBoxScaleTabMaterial resource>
tabPlane1.scaleTabHints	<tabBoxScaleTabHints resource>
tabPlane2.scaleTabHints	<tabBoxScaleTabHints resource>
tabPlane3.scaleTabHints	<tabBoxScaleTabHints resource>
tabPlane4.scaleTabHints	<tabBoxScaleTabHints resource>
tabPlane5.scaleTabHints	<tabBoxScaleTabHints resource>
tabPlane6.scaleTabHints	<tabBoxScaleTabHints resource>

}

DRAGGER RESOURCES

Resource:	tabBoxTranslator
Parts:	tabPlane1.translator<BR> tabPlane2.translator<BR> tabPlane3.translator<BR> tabPlane4.translator<BR> tabPlane5.translator<BR> tabPlane6.translator
Appearance:	Outline of a Square. The region within is pickable
Description:	Begins translation within the plane. The tabBox places and orients each tabPlane so that these squares form a box.
Resource:	tabBoxScaleTabMaterial
Parts:	tabPlane1.scaleTabMaterial<BR> tabPlane2.scaleTabMaterial<BR> tabPlane3.scaleTabMaterial<BR> tabPlane4.scaleTabMaterial<BR> tabPlane5.scaleTabMaterial<BR> tabPlane6.scaleTabMaterial
Appearance:	Green - half diffuse, half emissive.
Description:	Used as material for scaling tabs.
Resource:	tabBoxScaleTabHints
Parts:	tabPlane1.scaleTabHints<BR> tabPlane2.scaleTabHints<BR> tabPlane3.scaleTabHints<BR> tabPlane4.scaleTabHints<BR> tabPlane5.scaleTabHints<BR> tabPlane6.scaleTabHints
Appearance:	shapeHints node:COUNTERCLOCKWISE/SOLID/CONVEX
Description:	Property for the tab nodes.
Resource:	tabBoxBoxGeom
Part:	boxGeom
Appearance:	Unpickable gray outline of a box.
Description:	Just feedback.

CATALOG PARTS

All Parts

Part Name	Part Type	Default Type	NULL Default
callbackList	NodeKitListPart		yes
surroundScale	SurroundScale		yes
tabPlane1	TabPlaneDragger		yes
tabPlane2	TabPlaneDragger		yes
tabPlane3	TabPlaneDragger		yes
tabPlane4	TabPlaneDragger		yes
tabPlane5	TabPlaneDragger		yes
tabPlane6	TabPlaneDragger		yes
boxGeom	Separator		yes

Extra Information for List Parts from Above Table

Part Name	Container Type	Possible Types
callbackList	Separator	Callback, EventCallback

See also:

SoTabBoxManip, SoROIManip, SoInteractionKit, SoDragger, SoCenterballDragger, SoDirectionalLightDragger, SoDragPointDragger, SoHandleBoxDragger, SoJackDragger, SoPointLightDragger, SoRotateCylindricalDragger, SoRotateDiscDragger, SoRotateSphericalDragger, SoScale1Dragger, SoScale2Dragger, SoScale2UniformDragger, SoScaleUniformDragger, SoSpotLightDragger, SoTabPlaneDragger, SoTrackballDragger, SoTransformBoxDragger, SoTransformerDragger, SoTranslate1Dragger, SoTranslate2Dragger

Nested Class Summary

Nested classes/interfaces inherited from class com.openinventor.inventor.draggers.SoDragger

SoDragger.TrackerDirectModes

Nested classes/interfaces inherited from class com.openinventor.inventor.nodekits.SoInteractionKit

SoInteractionKit.Cachings

Nested classes/interfaces inherited from class com.openinventor.inventor.nodes.SoNode

SoNode.RenderModes

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field and Description
SoSFBool	privateStyle Controls whether this instance of SoTabBoxDragger shares or does not share parts, e.g.
SoSFBool	resizeHandles If set to true, handles will be resized at each camera motion.
SoSFVec3f	scaleFactor Scale of the dragger.
SoSFInt32	tabPixelSize Specifies the size of the green tabs in pixels.
SoSFVec3f	translation Position of the dragger.

Fields inherited from class com.openinventor.inventor.draggers.SoDragger

enableCallbacks, isActive

Fields inherited from class com.openinventor.inventor.nodekits.SoInteractionKit

boundingBoxCaching, pickCulling, renderCaching, renderCulling

Fields inherited from class com.openinventor.inventor.nodekits.SoBaseKit

boundingBoxIgnoring

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SoTabBoxDragger() Constructor.

Method Summary

Modifier and Type	Method and Description
void	adjustScaleTabSize() Cause the scale tab sizes to be re-adjusted on all 6 SoTabPlaneDraggers so that they remain a near constant screen space size.
static SoNodekitCatalog	getClassNodekitCatalog() Returns the SoNodekitCatalog for this class.

Methods inherited from class com.openinventor.inventor.draggers.SoDragger

addFinishCallback, addMotionCallback, addStartCallback, addValueChangedCallback, enableValueChangedCallbacks, getInitialTrackerDirectMode, getMinGesture, getMinGestureFloat, getMinScale, getMotionMatrix, getTrackerDirectMode, removeFinishCallback, removeMotionCallback, removeStartCallback, removeValueChangedCallback, setInitialTrackerDirectMode, setInitialTrackerDirectMode, setMinGesture, setMinGesture, setMinScale, setMotionMatrix, setTrackerDirectMode, setTrackerDirectMode

Methods inherited from class com.openinventor.inventor.nodekits.SoInteractionKit

setPartAsPath

Methods inherited from class com.openinventor.inventor.nodekits.SoBaseKit

getNodekitCatalog, getPart, getPart, getPartString, getViewportIsEnabled, getViewportOrigin, getViewportSize, isSearchingChildren, set, set, setPart, setSearchingChildren

Methods inherited from class com.openinventor.inventor.nodes.SoNode

affectsState, callback, copy, copy, distribute, doAction, getAlternateRep, getBoundingBox, getByName, getMatrix, getPrimitiveCount, getRenderEngineMode, getRenderUnitID, GLRender, GLRenderBelowPath, GLRenderInPath, GLRenderOffPath, grabEventsCleanup, grabEventsSetup, handleEvent, isBoundingBoxIgnoring, isOverride, pick, rayPick, search, setOverride, touch, write

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable

Methods inherited from class com.openinventor.inventor.Inventor

getNativeResourceHandle

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

translation

public final SoSFVec3f translation

Position of the dragger. Default is 0,0,0.

scaleFactor

public final SoSFVec3f scaleFactor

Scale of the dragger. Default is 1,1,1.

resizeHandles

public final SoSFBool resizeHandles

If set to true, handles will be resized at each camera motion. Default is true.

Since:

Open Inventor 7.0

tabPixelSize

public final SoSFInt32 tabPixelSize

Specifies the size of the green tabs in pixels. Default is 8

Since:

Open Inventor 9.2

privateStyle

public final SoSFBool privateStyle

Controls whether this instance of SoTabBoxDragger shares or does not share parts, e.g. tabBoxTranslator, tabBoxScaleTabMaterial and tabBoxScaleTabHints with all other existing instances of SoTabBoxDragger. Default is false, meaning the application can change these parts without affecting other draggers in the scene graph. (Effectively the default was true prior to version 9.6.1)

Since:

Open Inventor 9.6.1

Constructor Detail

SoTabBoxDragger

public SoTabBoxDragger()

Constructor.

Method Detail

getClassNodekitCatalog

public static SoNodekitCatalog getClassNodekitCatalog()

Returns the SoNodekitCatalog for this class.

adjustScaleTabSize

public void adjustScaleTabSize()

Cause the scale tab sizes to be re-adjusted on all 6 SoTabPlaneDraggers so that they remain a near constant screen space size. This happens automatically upon dragger finish. Call this to adjust the scale tab sizes at other times, for instance after the camera has changed in a viewer finish callback .
