SoRenderToTextureProperty Class Reference
[General]

Class for creating a texture by rendering a scene graph More...

#include <Inventor/nodes/SoRenderToTextureProperty.h>

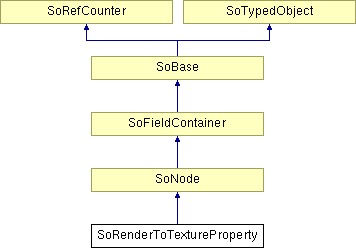

Inheritance diagram for SoRenderToTextureProperty:

List of all members.

Public Types
enum	UpdatePolicy {   EACH_FRAME,   WHEN_NEEDED,   ON_TRIGGER }
enum	Component {   RGB,   RGB_TRANSPARENCY,   RGB_ALPHA = RGB_TRANSPARENCY,   DEPTH }
Public Member Functions
virtual SoType	getTypeId () const
	SoRenderToTextureProperty ()
void	setGLRenderAction (SoGLRenderAction *ra)
SoGLRenderAction *	getGLRenderAction () const
Static Public Member Functions
static SoType	getClassTypeId ()
Public Attributes
SoMFNode	node
SoMFPath	path
SoSFEnum	updatePolicy
SoSFColor	backgroundColor
SoSFVec2s	size
SoSFEnum	component
SoSFTrigger	trigger
Friends
class	SoTextureCubeMap
class	inventor::impl::SoTextureCubeMapImpl
class	SoTexture2
class	inventor::impl::SoTexture2Impl
Deprecated
SoDEPRECATED void	setGraphicConfigTemplate (SoGLGraphicConfigTemplate *)
SoDEPRECATED SoGLGraphicConfigTemplate *	getGraphicConfigTemplate ()
SoDEPRECATED void	setContextForSharing (SoGLContext *)

---

Detailed Description

Class for creating a texture by rendering a scene graph

This class is used to define an image for texture mapping which is created by rendering a scene graph.

It can be used with the classes SoTexture2 and SoTextureCubeMap. Create the SoRenderToTextureProperty node and assign it to the renderToTextureProperty field of the texture mapping node.

The SoRenderToTarget node can also be used to create texture images.

One of the two fields, node or path, must be defined.

The scene graph should normally contain a camera and at least one light. Unlike SoRenderToTarget, the children of SoRenderToTextureProperty do not inherit the camera, lights, etc from the main scene graph.

Note that the default image size is 0,0 (effectively disables rendering).

FILE FORMAT/DEFAULT

RenderToTextureProperty {

node	[]
path	""
updatePolicy	WHEN_NEEDED
backgroundColor	0 0 0
size	0 0
component	RGB

}

SEE ALSO

SoTexture2, SoTextureCubeMap

See related examples:

FeaturesRenderToTexture, MedicalMagicGlass, MedicalMagnifier

---

Member Enumeration Documentation

enum SoRenderToTextureProperty::Component

Rendering component enumeration values.

Enumerator:

RGB	Default. The RGB components are rendered to the texture.
RGB_TRANSPARENCY	The RGB and alpha components are rendered to the texture.
RGB_ALPHA
DEPTH	The depth component is rendered to the texture.

enum SoRenderToTextureProperty::UpdatePolicy

Update Policy enumeration values.

Enumerator:

EACH_FRAME	The texture is updated at each traversal of the shape it is mapped to.
WHEN_NEEDED	Default. The texture is updated only if the path or node fields have changed.
ON_TRIGGER	The texture is updated only if the trigger field is touched.

---

Constructor & Destructor Documentation

SoRenderToTextureProperty::SoRenderToTextureProperty

(

)

---

Member Function Documentation

static SoType SoRenderToTextureProperty::getClassTypeId

(

)

[static]

Returns the type identifier for this class.

Reimplemented from SoNode.

SoGLRenderAction* SoRenderToTextureProperty::getGLRenderAction

(

)

const

Returns the render action used for rendering the scene.

SoDEPRECATED SoGLGraphicConfigTemplate* SoRenderToTextureProperty::getGraphicConfigTemplate

(

)

[inline]

Deprecated:

Deprecated since Open Inventor 10000
No more used. Related to deprecated PBuffer implementation. Always return NULL

virtual SoType SoRenderToTextureProperty::getTypeId

(

)

const [virtual]

Returns the type identifier for this specific instance.

Reimplemented from SoNode.

SoDEPRECATED void SoRenderToTextureProperty::setContextForSharing

(

SoGLContext *

)

[inline]

Deprecated:

Deprecated since Open Inventor 10000
No more used. Related to deprecated PBuffer implementation.

void SoRenderToTextureProperty::setGLRenderAction

(

SoGLRenderAction *

ra

)

Specifies a custom render action to use for rendering the scene.

SoDEPRECATED void SoRenderToTextureProperty::setGraphicConfigTemplate

(

SoGLGraphicConfigTemplate *

)

[inline]

Deprecated:

Deprecated since Open Inventor 10000
No more used. Related to deprecated PBuffer implementation.

---

Friends And Related Function Documentation

friend class inventor::impl::SoTexture2Impl [friend]

friend class inventor::impl::SoTextureCubeMapImpl [friend]

friend class SoTexture2 [friend]

friend class SoTextureCubeMap [friend]

---

Member Data Documentation

SoSFColor SoRenderToTextureProperty::backgroundColor

Background color used when rendering the scene graph.

Black by default.

SoSFEnum SoRenderToTextureProperty::component

Specifies the type of component(s) for the rendering.

Use enum Component. Default is RGB.

SoMFNode SoRenderToTextureProperty::node

Specifies the scene graph(s) (SoNode(s)) to be rendered into the texture.

For use with SoTexture2, only one scene graph should be specified. For use with SoTextureCube map, six scene graphs must be specified, one for each face of the cube in the order:

• imagePosX (left)
• imageNegX (right)
• imagePosY (bottom)
• imageNegY (top)
• imagePosZ (back)
• imageNegZ (front)

The node field has priority over the path field. Null by default.

SoMFPath SoRenderToTextureProperty::path

Specifies the scene graph(s) (SoPath(s)) to be rendered into the texture.

For use with SoTexture2, only one path should be specified. For use with SoTextureCube map, six paths must be specified, one for each face of the cube in the order:

• imagePosX (left)
• imageNegX (right)
• imagePosY (bottom)
• imageNegY (top)
• imagePosZ (back)
• imageNegZ (front)

The node field has priority over the path field. Null by default.

SoSFVec2s SoRenderToTextureProperty::size

Size in pixels of the rendered texture.

(0, 0) by default.

SoSFTrigger SoRenderToTextureProperty::trigger

Trigger field to render the scene into the Pbuffer.

Effective only if updatePolicy is ON_TRIGGER.

SoSFEnum SoRenderToTextureProperty::updatePolicy

Specifies the policy for rendering to the texture.

Use enum UpdatePolicy. Default is WHEN_NEEDED.

---

The documentation for this class was generated from the following file:

• Inventor/nodes/SoRenderToTextureProperty.h
