SoVRMLMetadataFloat Class Reference
[X3D Nodes]
Provides Metadata in single precision.
More...
#include <Inventor/VRMLnodes/SoVRMLMetadataFloat.h>

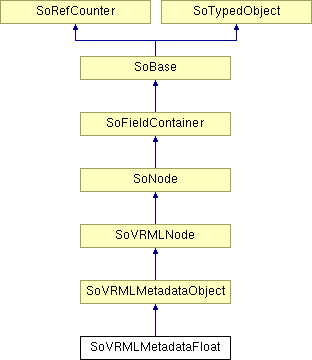

Inheritance diagram for SoVRMLMetadataFloat:
Public Member Functions | |
| virtual SoType | getTypeId () const |
| SoVRMLMetadataFloat () | |
Static Public Member Functions | |
| static SoType | getClassTypeId () |
Public Attributes | |
| SoMFFloat | value |
Detailed Description
Provides Metadata in single precision.
See the X3D Specification, below.
NOTE: This class does not exist in Open Inventor 10.0 and later.VRML X3D SPECIFICATION
- This section describes the expected behavior of the node in a conforming X3D browser application. In some cases, the application is responsible for implementing portions of the expected behavior. Open Inventor viewer classes and IVF classes implement some of the application behaviors.
This section may reference portions of the X3D specification that are not present in this help file. The complete X3D spec is available at http://www.web3d.org .
SoVRMLMetadataFloat provides Metadata in single precision values.
ACTION BEHAVIOR
FILE FORMAT/DEFAULT
- VRMLMetadataFloat {
| reference | "" |
| name | "" |
| value | [] |
| metadata | NULL |
EVENTS
- Deprecated:
-
Deprecated since Open Inventor 9500
The VRML API is no longer supported. See section http://oivdoc95.vsg3d.com/content/compatibility-notes-4#Deprecation of the Reference Manual. - Inventor/VRMLnodes/SoVRMLMetadataFloat.h
eventIn
| SoMFFloat | set_value |
| SoSFNode | set_metadata |
| SoSFString | set_name |
| SoSFString | set_reference |
eventOut
| SoMFFloat | value_changed |
| SoSFNode | metadata_changed |
| SoSFString | name_changed |
| SoSFString | reference _changed |
Constructor & Destructor Documentation
| SoVRMLMetadataFloat::SoVRMLMetadataFloat | ( | ) |
Constructor.
Member Function Documentation
| static SoType SoVRMLMetadataFloat::getClassTypeId | ( | ) | [static] |
Returns the type identifier for this class.
Reimplemented from SoVRMLMetadataObject.
| virtual SoType SoVRMLMetadataFloat::getTypeId | ( | ) | const [virtual] |
Returns the type identifier for this specific instance.
Reimplemented from SoVRMLMetadataObject.
Member Data Documentation
The metadata provided by this node is contained in the single-precision floating point numbers of the value field.
The documentation for this class was generated from the following file:
