SbTVizColorScale Class Reference
[TerrainViz]

Class to manage colorscales More...

#include <TerrainViz/SbTVizColorScale.h>

List of all members.

Public Types
enum	ColorMode {   TVIZ_SHADING = 0,   TVIZ_CONTOURING }
Public Member Functions
	SbTVizColorScale ()
	SbTVizColorScale (const SbTVizColorScale &colorScale)
virtual	~SbTVizColorScale ()
void	setColors (int numColors, const SbColor *colors)
const SbColor *	getColors () const
int	getNumColors () const
void	setAltitudes (int numAltitudes, const float *altitudes)
const float *	getAltitudes () const
int	getNumAltitudes () const
void	setExtremeColors (SbColor &lowerColor, SbColor &upperColor)
void	getExtremeColors (SbColor &lowerColor, SbColor &upperColor) const
void	getColor (float altitude, SbColor &color) const
void	setColorMode (ColorMode colorMode)
ColorMode	getColorMode () const

---

Detailed Description

Class to manage colorscales

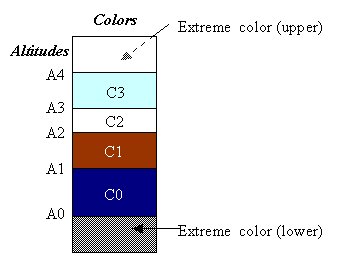

This class manages a list of altitudes and a corresponding color list.

Colors are mapped onto the terrain using the altitude scale. For N colors, N+1 altitudes must be supplied. Extreme colors are mapped for data outside the given limits (high and low).

If no colors are supplied, white is used.

Two modes are available:

• TVIZ_SHADING (default) uses OpenGL shading on every vertex.
• TVIZ_CONTOURING maps colors by contouring.

SEE ALSO

SbTVizRegularGridData, SoTViz, SoTVizRender

Deprecated:

Deprecated since Open Inventor 9500
No longer supported.

---

Member Enumeration Documentation

enum SbTVizColorScale::ColorMode

Enumerator:

TVIZ_SHADING	Colorscale is smoothed.
TVIZ_CONTOURING	Colorscale is applied by contouring.

---

Constructor & Destructor Documentation

SbTVizColorScale::SbTVizColorScale

(

)

Constructor.

SbTVizColorScale::SbTVizColorScale

(

const SbTVizColorScale &

colorScale

)

Constructor by copy.

virtual SbTVizColorScale::~SbTVizColorScale

(

)

[virtual]

Destructor.

---

Member Function Documentation

const float* SbTVizColorScale::getAltitudes

(

)

const

Returns the altitude array.

void SbTVizColorScale::getColor	(	float	altitude,
		SbColor &	color
	)			const

Returns the color at the specified height.

ColorMode SbTVizColorScale::getColorMode

(

)

const

Returns the color mode.

const SbColor* SbTVizColorScale::getColors

(

)

const

Returns the color array.

void SbTVizColorScale::getExtremeColors	(	SbColor &	lowerColor,
		SbColor &	upperColor
	)			const

Returns the lower and upper colors used for extreme values.

int SbTVizColorScale::getNumAltitudes

(

)

const

Returns the altitude array length.

int SbTVizColorScale::getNumColors

(

)

const

Returns the color array length.

void SbTVizColorScale::setAltitudes	(	int	numAltitudes,
		const float *	altitudes
	)

Sets the altitude array.

This array should be one element longer than the colors array. The array must be sorted by increasing values.

void SbTVizColorScale::setColorMode

(

ColorMode

colorMode

)

Sets the color mode.

void SbTVizColorScale::setColors	(	int	numColors,
		const SbColor *	colors
	)

Sets the color array.

This array should be one element shorter than the altitudes array.

void SbTVizColorScale::setExtremeColors	(	SbColor &	lowerColor,
		SbColor &	upperColor
	)

Sets the lower and upper colors used for the extreme low and high values.

The default upper extreme color is white, the default lower extreme color is black.

---

The documentation for this class was generated from the following file:

• TerrainViz/SbTVizColorScale.h
