- java.lang.Object
-
- All Implemented Interfaces:
- SafeDisposable
public class PoLinearAxis extends PoCartesianAxis
Class to build a linear axis. This class builds a linear axis. This axis will be generated between the point start and the point end. The graduations (tick marks, labels, etc) will be in the plane given by the fieldPoCartesianAxis.type.By default, the text of the displayed graduations (the tick mark labels) are based on the actual coordinates of the axis (start and end). The text of the graduations is based on the specified range if the
gradStartandgradEndfields are not equal.The graduations format depends on the current numerical display format. If the method setFormat(format) is called, the current numerical display format is "format". Otherwise the numerical display format is the inherited value from
PoNumericDisplayFormat(default AUTO).See

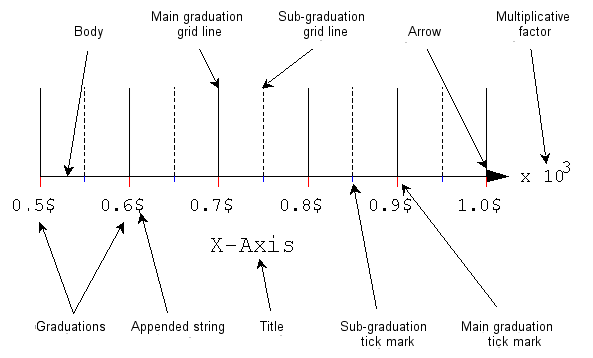

PoAxisfor discussion of axis attributes.Axis Attributes
- Log axis (
PoLogAxis) - Time axis (
PoTimeAxis) - General non-numeric axis (
PoGenAxis) - Polar axis (
PoPolarLinAxis,PoPolarLogAxis)
Multiple axes can generated conveniently using
PoGroup2Axis, etc.File format/default:
gradVisibility VISILITY_DEPEND gradPosition GRAD_DEPEND gradPath PATH_DEPEND gradFontName "" gradFontSize 0 gradDistAxis 0 gradAddStringVisibility false gradAddString "" marginType REL_MARGIN marginStart 0 marginEnd 0 titleVisibility VISILITY_DEPEND titlePosition TITLE_DEPEND titlePath PATH_DEPEND titleFontName "" titleFontSize 0 titleDistAxis 0 titleString "" gridVisibility VISILITY_DEPEND gridLengthGradSide 0 gridLengthGradOtherSide 1 arrowVisibility VISIBILITY_DEPEND arrowHeight 0.03 arrowLength 0.05 tickVisibility VISIBILITY_DEPEND tickPosition TICK_GRAD_SIDE tickMainLength 0 tickSubLength 0 tickSubDef PERIOD_MAIN_TICK tickNumOrPeriod 1 tickFirstGrad 1 tickLastGrad 1 reverseFlag AXIS_REVERSE_DEPEND start 0 0 0 end 1 gradStart 0 gradEnd 0 type XY step 0 gradFit GRAD_UNFIT multFactorPosition MULT_FACTOR_END multFactorDistAxis 0 See also:
PoGenAxis,PoLogAxis,PoLogAxis,PoTimeAxis,PoPolarLinAxis,PoPolarLogAxis<!DOCTYPE HTML PUBLIC "-//IETF//DTD HTML//EN"> <html> <head> <link REL="stylesheet" TYPE="text/css" HREF="../../stylesheet.css" TITLE="Style"> <title></title> </head> <BODY> <h1></h1> <h4> <A NAME="Heading544">CATALOG PARTS</A></h4> <ul><b>PoLinearAxis</b> {</ul> <ul><ul><b>Separator</b> <tt>alternateRep</tt> (from PoBase) {<br> </ul></ul> <ul><ul><ul><b>AppearanceKit</b> <tt>appearance</tt> (from PoBase)</ul></ul></ul> <ul><ul><ul><i>Specifies the appearance of all the kit. By default lightModel.model=BASE_COLOR.</i></ul></ul></ul> <ul><ul><ul><b>MatrixTransform</b> <tt>domainTransform</tt> (from PoBase)</ul></ul></ul> <ul><ul><ul><i>Corresponds to the domain transformation.</i></ul></ul></ul> <ul><ul><ul><b>MatrixTransform</b> <tt>transform</tt> (from PoAxis)</ul></ul></ul> <ul><ul><ul><i>Corresponds to the axis plane orientation matrix.</i></ul></ul></ul> <ul><ul><ul><b>Separator</b> <tt>bodySep</tt> (from PoAxis) {</ul></ul></ul> <ul><ul><ul><i>Contains properties and shapes to draw the body of the axis.</i></ul></ul></ul> <ul><ul><ul><ul><b>AppearanceKit</b> <tt>bodyApp </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Specifies the appearance of the body of the axis.</i></ul></ul></ul></ul> <ul><ul><ul><ul><b>Group</b> <tt>body </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Contains a SoLineSet shape to draw the body of the axis.</i></ul></ul></ul></ul> <ul><ul><ul>}<br> <br> <b>Separator</b> <tt>arrowSep</tt> (from PoAxis) {</ul></ul></ul> <ul><ul><ul><i>Contains properties and shapes to draw the arrow.</i></ul></ul></ul> <ul><ul><ul><ul><b>AppearanceKit</b> <tt>arrowApp </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Specifies the appearance of the arrow.</i></ul></ul></ul></ul> <ul><ul><ul><ul><b>Group</b> <tt>arrow </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Contains a SoFaceSet shape to draw the arrow.</i></ul></ul></ul></ul> <ul><ul><ul>}<br> <br> <b>Separator</b> <tt>subGradTickSep</tt> (from PoAxis) {</ul></ul></ul> <ul><ul><ul><i>Contains properties and shapes to draw sub-graduation tick.</i></ul></ul></ul> <ul><ul><ul><ul><b>AppearanceKit</b> <tt>subGradTickApp </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Specifies the appearance of sub-graduation tick.</i></ul></ul></ul></ul> <ul><ul><ul><ul><b>Group</b> <tt>subGradTick </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Contains a SoLineSet shape to draw sub-graduation tick.</i></ul></ul></ul></ul> <ul><ul><ul>}<br> <br> <b>Separator</b> <tt>subGradGridSep</tt> (from PoAxis){</ul></ul></ul> <ul><ul><ul><i>Contains properties and shapes to draw sub-graduation grid.</i></ul></ul></ul> <ul><ul><ul><ul><b>AppearanceKit</b> <tt>subGradGridApp </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Specifies the appearance of sub-graduation grid.</i></ul></ul></ul></ul> <ul><ul><ul><ul><b>Group</b> <tt>subGradGrid </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Contains a SoLineSet shape to draw sub-graduation grid.</i></ul></ul></ul></ul> <ul><ul><ul>}<br> <br> <b>Separator</b> <tt>mainGradTickSep</tt> (from PoAxis){</ul></ul></ul> <ul><ul><ul><i>Contains properties and shapes to draw main-graduation tick.</i></ul></ul></ul> <ul><ul><ul><ul><b>AppearanceKit</b> <tt>mainGradTickApp </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Specifies the appearance of main-graduation tick.</i></ul></ul></ul></ul> <ul><ul><ul><ul><b>Group</b> <tt>mainGradTick </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Contains a SoLineSet shape to draw main-graduation tick.</i></ul></ul></ul></ul> <ul><ul><ul>}<br> <br> <b>Separator</b> <tt>mainGradGridSep</tt> (from PoAxis){</ul></ul></ul> <ul><ul><ul><i>Contains properties and shapes to draw main-graduation grid.</i></ul></ul></ul> <ul><ul><ul><ul><b>AppearanceKit</b> <tt>mainGradGridApp </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Specifies the appearance of main-graduation grid.</i></ul></ul></ul></ul> <ul><ul><ul><ul><b>Group</b> <tt>mainGradGrid </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Contains a SoLineSet shape to draw main-graduation grid.</i></ul></ul></ul></ul> <ul><ul><ul>}<br> <br> <b>Separator</b> <tt>mainGradTextSep</tt> (from PoAxis) {</ul></ul></ul> <ul><ul><ul><i>Contains properties and shapes to draw main-graduation text.</i></ul></ul></ul> <ul><ul><ul><ul><b>AppearanceKit</b> <tt>mainGradTextApp </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Specifies the appearance of main-graduation text. By default drawStyle.style=LINES. font.size and font.name are set when the kit is rebuilt. </i></ul></ul></ul></ul> <ul><ul><ul><ul><b>Group</b> <tt>mainGradText </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Contains a list of SoAnnoText3 shapes to draw main-graduation text.</i></ul></ul></ul></ul> <ul><ul><ul>}<br> <br> <b>Separator</b> <tt>titleSep</tt> (from PoAxis) {</ul></ul></ul> <ul><ul><ul><i>Contains properties and shapes to draw title text.</i></ul></ul></ul> <ul><ul><ul><ul><b>AppearanceKit</b> <tt>titleApp </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Specifies the appearance of title text. By default drawStyle.style=LINES. font.size and font.name are set when the kit is rebuilt.</i></ul></ul></ul></ul> <ul><ul><ul><ul><b>Group</b> <tt>title </tt>(from PoAxis)</ul></ul></ul></ul> <ul><ul><ul><ul><i>Contains a SoAnnoText3 shape to draw title.</i></ul></ul></ul></ul> <ul><ul><ul>}<br> <br> <b>Separator</b> <tt>multFactorSep </tt>{</ul></ul></ul> <ul><ul><ul><i>Contains properties and shapes to draw multiplicative factor.</i></ul></ul></ul> <ul><ul><ul><ul><b>AppearanceKit</b> <tt>multFactorApp</tt></ul></ul></ul></ul> <ul><ul><ul><ul><i>Specifies the appearance of multiplicative factor. By default drawStyle.style=LINES. font.size and font.name are set when the kit is rebuilt.</i></ul></ul></ul></ul> <ul><ul><ul><ul><b>Group</b> <tt>multFactor</tt></ul></ul></ul></ul> <ul><ul><ul><ul><i>Contains a list of SoAnnoText3 shape to draw multiplicative factor.</i></ul></ul></ul></ul> <ul><ul><ul>}</ul></ul></ul> <ul><ul>}</ul></ul> <ul>}</ul> <ul><ul><br> </ul></ul> </body> </html>
-
-
Nested Class Summary
Nested Classes Modifier and Type Class and Description static classPoLinearAxis.GradFitsFirst graduation rounded or not.static classPoLinearAxis.MultFactorstatic classPoLinearAxis.MultFactorPositions-
Nested classes/interfaces inherited from class com.openinventor.meshviz.graph.PoCartesianAxis
PoCartesianAxis.Types
-
Nested classes/interfaces inherited from class com.openinventor.meshviz.graph.PoAxis
PoAxis.ArrowAttributes, PoAxis.AxisReverses, PoAxis.GradAttributes, PoAxis.GradPositions, PoAxis.GridAttributes, PoAxis.MarginAttributes, PoAxis.MarginTypes, PoAxis.TextPaths, PoAxis.TickAttributes, PoAxis.TickPositions, PoAxis.TickSubDefs, PoAxis.TitleAttributes, PoAxis.TitlePositions, PoAxis.Visibilities
-
Nested classes/interfaces inherited from class com.openinventor.meshviz.graph.PoBase
PoBase.NodeWriteFormats, PoBase.TextTypes, PoBase.UpdateMethodTypes
-
Nested classes/interfaces inherited from class com.openinventor.inventor.nodes.SoNode
SoNode.RenderModes
-
Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor
Inventor.ConstructorCommand
-
-
Field Summary
Fields Modifier and Type Field and Description SoSFEnum<PoLinearAxis.GradFits>gradFitThis flag indicates if the first graduation is rounded or not.SoSFFloatmultFactorDistAxisDistance from the multiplicative factor to the axis.SoSFEnum<PoLinearAxis.MultFactorPositions>multFactorPositionPosition of the multiplicative factor.SoSFFloatstepDefines the step for the axis.-
Fields inherited from class com.openinventor.meshviz.graph.PoCartesianAxis
end, gradEnd, gradStart, start, type
-
Fields inherited from class com.openinventor.meshviz.graph.PoAxis
arrowHeight, arrowLength, arrowVisibility, gradAddString, gradAddStringVisibility, gradDistAxis, gradFontName, gradFontSize, gradPath, gradPosition, gradVisibility, gridLengthGradOtherSide, gridLengthGradSide, gridVisibility, marginEnd, marginStart, marginType, reverseFlag, tickFirstGrad, tickLastGrad, tickMainLength, tickNumOrPeriod, tickPosition, tickSubDef, tickSubLength, tickVisibility, titleDistAxis, titleFontName, titleFontSize, titlePath, titlePosition, titleString, titleVisibility
-
Fields inherited from class com.openinventor.inventor.nodekits.SoBaseKit
boundingBoxIgnoring
-
Fields inherited from class com.openinventor.inventor.Inventor
VERBOSE_LEVEL, ZeroHandle
-
-
Constructor Summary
Constructors Constructor and Description PoLinearAxis()Default constructor.PoLinearAxis(SbVec3f _start, float _end, PoCartesianAxis.Types _type)Calls PoLinearAxis(_start, _end, _type, (float)0.0).PoLinearAxis(SbVec3f _start, float _end, PoCartesianAxis.Types _type, float _step)Constructor.PoLinearAxis(SbVec3f _start, float _end, PoCartesianAxis.Types _type, float _gradStart, float _gradEnd)Calls PoLinearAxis(_start, _end, _type, _gradStart, _gradEnd, (float)0.0).PoLinearAxis(SbVec3f _start, float _end, PoCartesianAxis.Types _type, float _gradStart, float _gradEnd, float _step)Constructor.
-
Method Summary
All Methods Static Methods Instance Methods Concrete Methods Modifier and Type Method and Description static SoNodekitCataloggetClassNodekitCatalog()Returns theSoNodekitCatalogfor this class.PbNumericDisplayFormatgetFormat()Gets a reference to thePbNumericDisplayFormatobject for the numerical display format for the graduations.PoLinearAxis.MultFactorgetMultFactor()Returns the current multiplicative factor attributes (those computed can be different from the associated field).floatgetStep()Returns the current step attribute (the step computed can be different from the associated field).voidsetFormat(PbNumericDisplayFormat format)Sets a reference to aPbNumericDisplayFormatobject for the numerical display format for the graduations.-
Methods inherited from class com.openinventor.meshviz.graph.PoAxis
getArrow, getGrad, getGrid, getMargin, getMiscTextAttr, getReverseFlag, getTick, getTitle, setMiscTextAttr
-
Methods inherited from class com.openinventor.meshviz.graph.PoBase
addPostRebuildCallback, addPreRebuildCallback, getDomain, getNodeWriteFormat, getTextType, getUpdateMethod, isBuilt, isModified, isVRML2Mode, rebuild, setDomain, setNodeWriteFormat, setTextType, setUpdateMethod, setVRML2Mode, touchKit
-
Methods inherited from class com.openinventor.inventor.nodekits.SoBaseKit
getNodekitCatalog, getPart, getPart, getPartString, getViewportIsEnabled, getViewportOrigin, getViewportSize, isSearchingChildren, set, set, setPart, setSearchingChildren
-
Methods inherited from class com.openinventor.inventor.nodes.SoNode
affectsState, callback, copy, copy, distribute, doAction, getAlternateRep, getBoundingBox, getByName, getMatrix, getPrimitiveCount, getRenderEngineMode, getRenderUnitID, GLRender, GLRenderBelowPath, GLRenderInPath, GLRenderOffPath, grabEventsCleanup, grabEventsSetup, handleEvent, isBoundingBoxIgnoring, isOverride, pick, rayPick, search, setOverride, touch, write
-
Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer
copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, setToDefaults
-
Methods inherited from class com.openinventor.inventor.misc.SoBase
dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable
-
Methods inherited from class com.openinventor.inventor.Inventor
getNativeResourceHandle
-
-
-
-
Field Detail
-
step
public final SoSFFloat step
Defines the step for the axis. If this value is <= 0, the step is automatically calculated.
-
gradFit
public final SoSFEnum<PoLinearAxis.GradFits> gradFit
This flag indicates if the first graduation is rounded or not.
-
multFactorPosition
public final SoSFEnum<PoLinearAxis.MultFactorPositions> multFactorPosition
Position of the multiplicative factor.
-
-
Constructor Detail
-
PoLinearAxis
public PoLinearAxis(SbVec3f _start, float _end, PoCartesianAxis.Types _type)
Calls PoLinearAxis(_start, _end, _type, (float)0.0).
-
PoLinearAxis
public PoLinearAxis(SbVec3f _start, float _end, PoCartesianAxis.Types _type, float _gradStart, float _gradEnd)
Calls PoLinearAxis(_start, _end, _type, _gradStart, _gradEnd, (float)0.0).
-
PoLinearAxis
public PoLinearAxis()
Default constructor.
-
PoLinearAxis
public PoLinearAxis(SbVec3f _start, float _end, PoCartesianAxis.Types _type, float _step)
Constructor.
-
PoLinearAxis
public PoLinearAxis(SbVec3f _start, float _end, PoCartesianAxis.Types _type, float _gradStart, float _gradEnd, float _step)
Constructor.- Since:
- Open Inventor 9.3
-
-
Method Detail
-
getMultFactor
public PoLinearAxis.MultFactor getMultFactor()
Returns the current multiplicative factor attributes (those computed can be different from the associated field).
-
getClassNodekitCatalog
public static SoNodekitCatalog getClassNodekitCatalog()
Returns theSoNodekitCatalogfor this class.
-
setFormat
public void setFormat(PbNumericDisplayFormat format)
Sets a reference to aPbNumericDisplayFormatobject for the numerical display format for the graduations. If this method is not called (or called passing NULL as argument), the numerical display format defined in the current inherited state (defined with the property nodePoNumericDisplayFormat) is used.
-
getFormat
public PbNumericDisplayFormat getFormat()
Gets a reference to thePbNumericDisplayFormatobject for the numerical display format for the graduations. Returns null if none specified.
-
getStep
public float getStep()
Returns the current step attribute (the step computed can be different from the associated field).
-
-
