com.openinventor.inventor.nodes

Class SoFont

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.nodes.SoNode

com.openinventor.inventor.nodes.SoFont

All Implemented Interfaces:

SafeDisposable

Direct Known Subclasses:

SoFontStyle

public class SoFont
extends SoNode

Node that defines font name, size, and type for text. This node defines the current font type and point size for all subsequent text shapes in the scene graph. Depending on the font and render style selected, text shapes may be generated as polygons, lines, or textures.

Starting with Open Inventor 6.0, text computation is done using the FreeType 2 library (www.freetype.org). FreeType is a customizable and portable software font engine which is capable of producing high-quality output. FreeType allows support of more font formats than in previous Open Inventor versions: TrueType, Type 1, CID-keyed Type 1, CFF, SFNT-based bitmap, X11 PCF (including gz compressed fonts), Windows FNT, BDF, PFR, dfont, etc.

Starting with Open Inventor 6.0, Unicode text strings are supported. Please note that many fonts have limited support for Unicode characters, especially the Japanese, Chinese, and Korean glyphs.

Some font representing large extended characters and symbols Unicode set can be found:

• Free Quivira font can be found at http://www.quivira-font.com
• Open Source Code2000 font can be found at http://www.fontspace.com/james-kass/code2000
• GNU GPL Unifont can be found at http://www.unifoundry.com/unifont.html

Note:
SoFont will not issue an error message if the specified font is not found at runtime. It will quietly use the default font (e.g. Times New Roman on Windows) as a fallback. Applications can use the static method isAvailableFont() to check if a specific font is available. Default font can be setup explicitly by enironment variable OIV_FONT_NAME or programmatically see SoFontNameElement.setDefault() SoFontNameElement.getDefault().

Font name:

1. Common Font:


   The font name can be set either of two ways:

   • specifying directly the font file name (e.g., arial.ttf) with an absolute or relative path, or no path.
   • specifying the font family name and font style name with the form "family : style".

     Typical family names include:

     • Arial

     • Courier New

     • Times New Roman

     Typical style names include:

     • Bold

     • Italic

     • Bold Italic

   Loadable fonts:
   The names of all loadable font files available in your environment (depending on Open Inventor environment variables) can be obtained by calling getAvailableFonts().

   Font file location:


   To find the font file on your system, Open Inventor uses several rules. The following directories are searched (in this order):

   • 1 - Current directory
   • 2 - $OIV_FONT_PATH
   • 3 - System-default font directory
   • 4 - $OIVHOME/data/fonts

   The system-default font directory depends on the platform:

   Windows	(Retrieved from the registry. Often c:/Windows/Fonts)
   Solaris	/usr/openwin/lib/X11/fonts/Type1/outline
   AIX	/usr/lib/X11/fonts/Type1/DPS
   HP-UX	/usr/lib/X11/fonts/type1.st/typefaces
   OSF	/usr/lib/X11/fonts/Type1Adobe
   Linux	/usr/share/X11/fonts;/usr/share/fonts;/usr/lib/X11/fonts
   MacOS	/Library/Fonts
   Other	/usr/lib/DPS/outline/base

   Environment variable OIV_FONT_PATH contains a colon-separated or semicolon-separated list of directories to search for font definition files.

2. Stroke Fonts:


   Stroke fonts, which are drawn with vectors rather than triangles, can provide higher performance, and also better readability at small sizes. Stroke fonts can be used with SoText3 and SoAnnoText3, but not with other text nodes, such as SoAsciiText. Stroke fonts cannot be extruded. Stroke fonts character code valid values must be in the range [32 .. 127]

   To use a stroke font, specify one of the following stroke font names:

   "OIV_Simplex_TGS"
   "OIV_Simplex_Roman"
   "OIV_Complex_Roman"
   "OIV_Duplex_Roman"
   "OIV_Triplex_Roman"
   "OIV_Simplex_Script"
   "OIV_Complex_Script"
   "OIV_Simplex_Greek"
   "OIV_Complex_Greek"
   "OIV_Gothic_German"
   "OIV_Gothic_Italian"
   "OIV_Gothic_English"
   "OIV_Complex_Cyrillic"
   "OIV_Upper_Case_Mathematics"
   "OIV_Lower_Case_Mathematics"
   "OIV_Music"
   "OIV_Meteorology"
   "OIV_Symbols"
   "OIV_Astrology"
   "OIV_Complex_Italic"
   "OIV_Triplex_Italic"

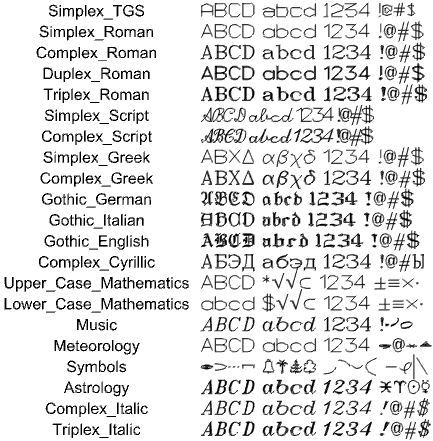

   The following figure shows an assortment of characters from each stroke font.



   Stroked fonts are subject to the current line attributes, line width and line pattern, which are specified with SoDrawStyle.

   By default, the stroke font files are found in $OIVHOME/data/fonts. If you move them to a different directory, set the environment variable OIV_STROKE_FONT_PATH to be the path to the new directory.

   Open Inventor uses several rules to find the font file on your system. The following directories are searched (in this order): (NB: If one of these directories exists, the rest are ignored)

   • 1 - $OIV_STROKE_FONT_PATH
   • 2 - $OIVHOME/data/fonts
   • 3 - ./fonts/

   Stroke fonts - Kanji and Katakana:

   Additional stroke font files are available for Kanji and Katakana output. To
   produce Kanji or Katakana stroke output, set the font to any one of the stroke
   font names. Then, for the text string, pass the desired multi-byte character
   string (MBCS) to Open Inventor, using the usual techniques. The font file name
   is not used except as a flag to indicate that stroke output should be produced.


Font name cache:

Making a call to the getAvailableFonts() method causes Open Inventor to build
an internal font name cache. This cache allows quick access to a newly requested
font name without requiring Open Inventor to parse all found font files on your system.
In the general case, when the #name field changes, Open Inventor searches for the
corresponding font file and adds its name to its cache for faster retrieval the next time.
For example, a request to "Arial : Regular" font name will be internally associated with
the arial.ttf font file. The next time "Arial : Regular" is requested, Open Inventor will use
arial.ttf. Specifying a not-previously-accessed string as a font name will
cause Open Inventor to parse this new string to find a new association. If no association is found,
a default font is used for this association. For instance, "Arial : Regul" doesn't
necessarily correspond to the arial.ttf font file.
To reset the font name cache, call the getAvailableFonts() method and specify the
clearDB parameter as true

Font rendering - caching strategy:

The maximum number of caches used during text rendering is specified by the OIV_MAX_FONT_CACHES environment variable. The default number of caches is 20. A cache corresponds to a set of parameters that are taken into account during the computation of a text string. These parameters can be, depending on the kind of text node you are using, font name, size, complexity, etc. The same cache is used for strings that have exactly the same appearance (but not necessarily the same characters). Note that the cache depends on color only for text bitmap rendering. That is, 2D text with renderStyle POLYGON.

It's important to specify an appropriate value for the maximum number of font caches as application performance can be highly dependent on the font caching. In fact, if not enough caches are available, in some cases, Open Inventor will have to recompute text metrics.

Font render style:

The renderStyle field allows you to control the rendering mode for the font. It's possible to render 3D text, e.g. SoText3, using filled polygons (default), filled and outlined polygons or textured quads. It's possible to render 2D text, e.g. SoText2, using bitmaps (default) or textured quads.

Text rendered in POLYGON renderStyle with high complexity (for nice appearance) may require a large number of polygons and reduce performance. Quality is controlled by the value field of SoComplexity.

Text rendered in TEXTURE modes uses very few polygons and takes advantage of fast texturing hardware on modern graphics boards. Quality is controlled by the textureQuality field of SoComplexity.
NOTE: When using a TEXTURE renderStyle, it is not possible to apply a texture image (e.g. SoTexture2) to the text geometry and the SoText3 geometry is not extruded even if the parts field is set to ALL.

Textured font rendering considerations:

Texture generation quality depends on the current complexity (defined by the SoComplexity.value field) and the current textureQuality (defined by the SoComplexity.textureQuality field) in collaboration with a texture resolution value range defined by the SoTextProperty.textureQualityRange field. Increasing these values will improve the quality of the output, but at the cost of decreased performance and increased memory consumption.

If render style TEXTURE is selected, then a texture image is generated for each character. The image of the character is automatically antialiased, which means that some pixels in the texture image will be transparent or partially transparent. Text rendered in this mode is a "transparent" object like any other transparent geometry, and may be rendered incorrectly depending on the order in which objects are rendered. To avoid this issue, you can set the transparency type for rendering the scene graph to, for example, SORTED_PIXEL (see SoGLRenderAction). Or, set the text renderStyle to TEXTURE_DELAYED. This allows delayed rendering of just the text objects. Note that even though setting the renderStyle field to TEXTURE_DELAYED is a very simple solution, it can reduce performance due to less efficient render caching. Another option is to move the text node definition in the scene graph to be after all shapes.

For text rendering with small font sizes, the default anti-aliasing can lead to undesirable blurring effects. The anti-aliasing level can be changed through the use of the SoTextProperty.aliasingFactor.

File format/default:

Font {

name	"defaultFont"
size	10
renderStyle	POLYGON

}

Action behavior:

SoGLRenderAction, SoCallbackAction, SoGetBoundingBoxAction, SoRayPickAction
Sets the font name and size in the current traversal state. Sets: SoFontNameElement, SoFontSizeElement, SoFontRenderStyleElement, SoTextOutlineEnabledElement

See also:

SoAnnoText3, SoAsciiText, SoText2, SoText3, SoTextProperty

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static class	SoFont.RenderStyles Render style.

Nested classes/interfaces inherited from class com.openinventor.inventor.nodes.SoNode

SoNode.RenderModes

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field and Description
SoSFString	name This field specifies the font name.
SoSFEnum<SoFont.RenderStyles>	renderStyle This field specifies the rendering style of the font.
SoSFFloat	size This field specifies the font size.

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SoFont() Creates a font node with default settings.

Method Summary

Modifier and Type	Method and Description
static void	addFontPaths(java.lang.String name_11936) Specifies paths for searching for font files.
static void	clearFontNameCache() Clears the Open Inventor internal font name cache, i.e., the list of available fonts.
static void	enableJapaneseSF() Calls enableJapaneseSF(true).
static void	enableJapaneseSF(boolean flag) Sets flag to enable strings to be interpreted using the Japanese MBCS encoding.
static int	getCurrNumFontCaches() Returns the current number of caches used for font rendering.
static java.lang.String	getFontPaths() Gets current font path list.
static int	getNumFontCaches() Returns the maximum number of caches that can be used for font rendering.
static boolean	isAvailableFont(java.lang.String name_11938) Returns true if the specified font is available for use by Open Inventor.
static boolean	isJapaneseSFEnabled() Gets flag that indicates whether strings should be interpreted using the MCS Japanese MBCS encoding.
static void	setFontPaths(java.lang.String name_11934) Specifies paths for searching for font files.
static void	setNumFontCaches(int maxNumCaches) Sets the maximum number of caches that can be used for font rendering.

Methods inherited from class com.openinventor.inventor.nodes.SoNode

affectsState, callback, copy, copy, distribute, doAction, getAlternateRep, getBoundingBox, getByName, getMatrix, getPrimitiveCount, getRenderEngineMode, getRenderUnitID, GLRender, GLRenderBelowPath, GLRenderInPath, GLRenderOffPath, grabEventsCleanup, grabEventsSetup, handleEvent, isBoundingBoxIgnoring, isOverride, pick, rayPick, search, setOverride, touch, write

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getName, isDisposable, isSynchronizable, setName, setSynchronizable

Methods inherited from class com.openinventor.inventor.Inventor

getNativeResourceHandle

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

name

public final SoSFString name

This field specifies the font name. The font name can be set either of two ways:

• specifying directly the font file name (e.g., arial.ttf) with an absolute or relative path, or no path.
• specifying the font family name and font style name with the form "family : style". Default is "defaultFont" (system dependent).

size

public final SoSFFloat size

This field specifies the font size. The value is in printer's points for 2D text (SoText2) and is in the current (object space) units for 3D text (SoText3). Default is 10.

renderStyle

public final SoSFEnum<SoFont.RenderStyles> renderStyle

This field specifies the rendering style of the font. . Default is POLYGON.

Since:

Open Inventor 5.0

Constructor Detail

SoFont

public SoFont()

Creates a font node with default settings.

Method Detail

enableJapaneseSF

public static void enableJapaneseSF()

Calls enableJapaneseSF(true).

setNumFontCaches

public static void setNumFontCaches(int maxNumCaches)

Sets the maximum number of caches that can be used for font rendering. Default is 20. This number corresponds to the number of changes that can be applied to a font: for example, to use the "Arial" and the "Times" fonts one after the other, two caches are created. Subsequently changing a rendering property like SoFont.renderStyle causes the creation of new caches. Properties that cause a cache to be rebuilt include the following:

• SoAsciiText: font name, size, render style, text orientation
• SoText2: font name, size, viewport size, render style, text orientation
• SoText3: font name, size, render style, text orientation, profile definition

Note: This list is not exhaustive.

isJapaneseSFEnabled

public static boolean isJapaneseSFEnabled()

Gets flag that indicates whether strings should be interpreted using the MCS Japanese MBCS encoding. This encoding is only used when a stroke font is specified.

isAvailableFont

public static boolean isAvailableFont(java.lang.String name_11938)

Returns true if the specified font is available for use by Open Inventor. Internally, this method builds a font name cache (once only). It scans some predefined directories and registers the association "Name : Style" <=> "font file".

enableJapaneseSF

public static void enableJapaneseSF(boolean flag)

Sets flag to enable strings to be interpreted using the Japanese MBCS encoding. This encoding is only used when a stroke font is specified. Default is true.

Set this flag to false if you want to use characters in the range 128-255 (ISO Latin-1) with stroke fonts.
NOTE: In this case the TGS Roman Simplex font will be used regardless of the stroke font specified (limitation).

[Win32] If the current code page is Japanese, the standard Microsoft MBCS encoding is used independent of this flag.

getNumFontCaches

public static int getNumFontCaches()

Returns the maximum number of caches that can be used for font rendering.

addFontPaths

public static void addFontPaths(java.lang.String name_11936)

Specifies paths for searching for font files. Use this method to add new font paths to the current list of searched paths. The paths must be separated by a semicolon (";")

getFontPaths

public static java.lang.String getFontPaths()

Gets current font path list.

clearFontNameCache

public static void clearFontNameCache()

Clears the Open Inventor internal font name cache, i.e., the list of available fonts.

getCurrNumFontCaches

public static int getCurrNumFontCaches()

Returns the current number of caches used for font rendering.

setFontPaths

public static void setFontPaths(java.lang.String name_11934)

Specifies paths for searching for font files. Using this method overrides all other font path definitions, i.e., Open Inventor environment variables and default system font directories. The paths must be separated by a semicolon (";")
