MiSurfaceMeshRectilinear Class Reference
[Mesh interfaces]
Rectilinear surface mesh abstract interface.
More...
#include <MeshVizXLM/mesh/MiSurfaceMeshRectilinear.h>
Public Member Functions | |
| virtual const MiSurfaceGeometryRectilinear & | getGeometry () const =0 |
Protected Member Functions | |
| virtual std::ostream & | toStream (std::ostream &s) const |
Detailed Description
Rectilinear surface mesh abstract interface.
This interface is similar to MiSurfaceMeshRegular except that the nodes are not equally spaced along each axis. Nodes are defined by a set of NUMI points on I, NUMJ points on J. Thus each cell is still a parallelogram but its surface depends on the spacing between two consecutive values of I and J.
- Note:
- The virtual methods are the same as in the parent class. The RTTI system is used by some extraction algorithms to identify the mesh type in order to implement some specific optimization based on the properties described above.
SEE ALSO
MiSurfaceMeshCurvilinear, MiSurfaceMeshRegular, MiSurfaceMeshUnstructured
- See related examples:
Member Function Documentation
| virtual const MiSurfaceGeometryRectilinear& MiSurfaceMeshRectilinear::getGeometry | ( | ) | const [pure virtual] |
Returns the geometry of this mesh.

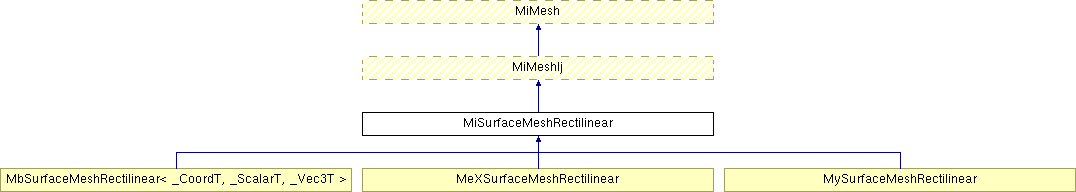

Implemented in MeXSurfaceMeshRectilinear, MbSurfaceMeshRectilinear< _CoordT, _ScalarT, _Vec3T >, and MySurfaceMeshRectilinear.
| virtual std::ostream& MiSurfaceMeshRectilinear::toStream | ( | std::ostream & | s | ) | const [inline, protected, virtual] |
Performs an output operation on a stream which is returned afterward. This method is protected since only called by the output operator <<. This method is not pure virtual and output by default the geometry and topology of a mesh. Whenever a different output is needed, this method can be implemented in the subclass to get a different output format. No std::ostream& operator << needs to be defined in any subclass. This allows you to benefit from the virtual inheritance when using the output operator on an abstract class.
Implements MiMesh.
The documentation for this class was generated from the following file:
- MeshVizXLM/mesh/MiSurfaceMeshRectilinear.h
