MbMeshIjk< _ScalarT, _Vec3T, _Layout > Class Template Reference
[Mesh]

Base class for all basic mesh implementation. More...

#include <MeshVizXLM/mesh/mesh/MbMeshIjk.h>

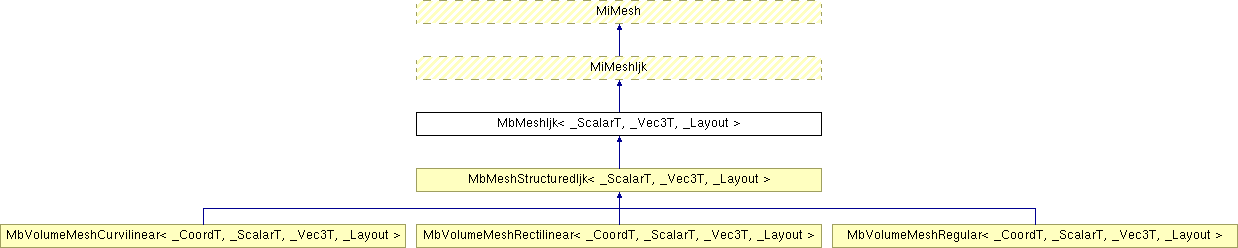

Inheritance diagram for MbMeshIjk< _ScalarT, _Vec3T, _Layout >:

List of all members.

Public Member Functions
virtual	~MbMeshIjk ()
bool	addScalarSetIjk (const MbScalarSetIjk< _ScalarT, _Layout > *scalarSet)
bool	addVec3SetIjk (const MbVec3SetIjk< _Vec3T, _Layout > *vectorSet)
bool	addStringSetIjk (const MbStringSetIjk< _Layout > *stringSet)
virtual const MbVec3SetIjk < _Vec3T, _Layout > *	getVec3SetIjk (size_t id) const
virtual const MbVec3SetIjk < _Vec3T, _Layout > *	getVec3SetIjk (std::string name) const
virtual const MbScalarSetIjk < _ScalarT, _Layout > *	getScalarSetIjk (size_t id) const
virtual const MbScalarSetIjk < _ScalarT, _Layout > *	getScalarSetIjk (std::string name) const
virtual const MbStringSetIjk < _Layout > *	getStringSetIjk (size_t id) const
virtual const MbStringSetIjk < _Layout > *	getStringSetIjk (std::string name) const
virtual size_t	getNumVec3SetsIjk () const
virtual size_t	getNumScalarSetsIjk () const
virtual size_t	getNumStringSetsIjk () const

---

Detailed Description

template<typename _ScalarT, typename _Vec3T, MiMeshIjk::StorageLayout _Layout = MiMeshIjk::LAYOUT_KJI>
class MbMeshIjk< _ScalarT, _Vec3T, _Layout >

Base class for all basic mesh implementation.

---

Constructor & Destructor Documentation

template<typename _ScalarT, typename _Vec3T, MiMeshIjk::StorageLayout _Layout = MiMeshIjk::LAYOUT_KJI>

virtual MbMeshIjk< _ScalarT, _Vec3T, _Layout >::~MbMeshIjk

(

)

[inline, virtual]

---

Member Function Documentation

template<typename _ScalarT, typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

bool MbMeshIjk< _ScalarT, _Vec3T, _Layout >::addScalarSetIjk

(

const MbScalarSetIjk< _ScalarT, _Layout > *

scalarSet

)

[inline]

Add the scalar data set to this mesh if a scalar data set with the same name is not already stored in this mesh.

The dataset are stored in a alphabetical order according to their name.

Returns:

false if the dataset is not added.

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

bool MbMeshIjk< _ScalarT, _Vec3T, _Layout >::addStringSetIjk

(

const MbStringSetIjk< _Layout > *

stringSet

)

[inline]

Add the string data set to this mesh if a string data set with the same name is not already stored in this mesh.

The dataset are stored in a alphabetical order according to their name.

Returns:

false if the dataset is not added.

template<typename _ScalarT , typename _Vec3T, MiMeshIjk::StorageLayout _Layout>

bool MbMeshIjk< _ScalarT, _Vec3T, _Layout >::addVec3SetIjk

(

const MbVec3SetIjk< _Vec3T, _Layout > *

vectorSet

)

[inline]

Add the vector data set to this mesh if a vector data set with the same name is not already stored in this mesh.

The dataset are stored in a alphabetical order according to their name.

Returns:

false if the dataset is not added.

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

size_t MbMeshIjk< _ScalarT, _Vec3T, _Layout >::getNumScalarSetsIjk

(

)

const [inline, virtual]

Get the size of data sets.

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

size_t MbMeshIjk< _ScalarT, _Vec3T, _Layout >::getNumStringSetsIjk

(

)

const [inline, virtual]

Get the size of data sets.

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

size_t MbMeshIjk< _ScalarT, _Vec3T, _Layout >::getNumVec3SetsIjk

(

)

const [inline, virtual]

Get the size of data sets.

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

const MbScalarSetIjk< _ScalarT, _Layout > * MbMeshIjk< _ScalarT, _Vec3T, _Layout >::getScalarSetIjk

(

std::string

name

)

const [inline, virtual]

Get a scalar dataset according to its name.

Returns:

NULL if not found.

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

const MbScalarSetIjk< _ScalarT, _Layout > * MbMeshIjk< _ScalarT, _Vec3T, _Layout >::getScalarSetIjk

(

size_t

id

)

const [inline, virtual]

Get a scalar dataset according to its alphabetical ordering number.

For instance getScalarSetIjk(0) returns the first dataset in the alphabetical order.

Returns:

NULL if id >= getNumScalarSetsIjk().

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

const MbStringSetIjk< _Layout > * MbMeshIjk< _ScalarT, _Vec3T, _Layout >::getStringSetIjk

(

std::string

name

)

const [inline, virtual]

Get a string dataset according to its name.

Returns:

NULL if not found.

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

const MbStringSetIjk< _Layout > * MbMeshIjk< _ScalarT, _Vec3T, _Layout >::getStringSetIjk

(

size_t

id

)

const [inline, virtual]

Get a string dataset according to its alphabetical ordering number.

For instance getStringSetIjk(0) returns the first dataset in the alphabetical order.

Returns:

NULL if id >= getNumStringSetsIjk().

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

const MbVec3SetIjk< _Vec3T, _Layout > * MbMeshIjk< _ScalarT, _Vec3T, _Layout >::getVec3SetIjk

(

std::string

name

)

const [inline, virtual]

Get a vector dataset according to its name.

Returns:

NULL if not found.

template<typename _ScalarT , typename _Vec3T , MiMeshIjk::StorageLayout _Layout>

const MbVec3SetIjk< _Vec3T, _Layout > * MbMeshIjk< _ScalarT, _Vec3T, _Layout >::getVec3SetIjk

(

size_t

id

)

const [inline, virtual]

Get a vector dataset according to its alphabetical ordering number.

For instance getVec3SetIjk(0) returns the first dataset in the alphabetical order.

Returns:

NULL if id >= getNumVec3SetsIjk().

---

The documentation for this class was generated from the following file:

• MeshVizXLM/mesh/mesh/MbMeshIjk.h
