2D SEGY with wiggle traces rendering.

Shows how to render 2D SEGY file info in a 3D view with different rendering mode of 2D traces information: density, wiggle, wiggles with variables area and combination of them.

It also show horizon rendering based Open Inventor geometry shape nodes.

FILES:

• VolumeViz/contrib/SegY-2D/main.cxx
• VolumeViz/contrib/SegY-2D/horizon.h
• VolumeViz/contrib/SegY-2D/horizon.cxx
• VolumeViz/contrib/SegY-2D/slice.h
• VolumeViz/contrib/SegY-2D/slice.cxx

SEE ALSO

SoVRSegyFileReader, SoVolumeRendering, SoVertexProperty, SoIndexedTriangleStripSet, SoQuadMesh, SoIndexedTexture2

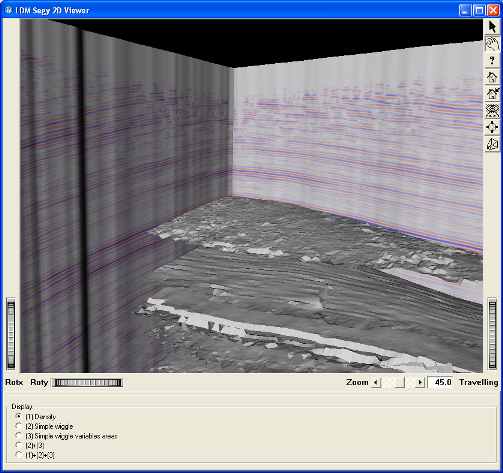

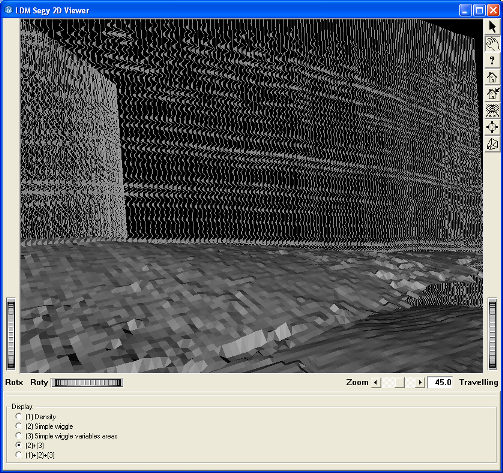

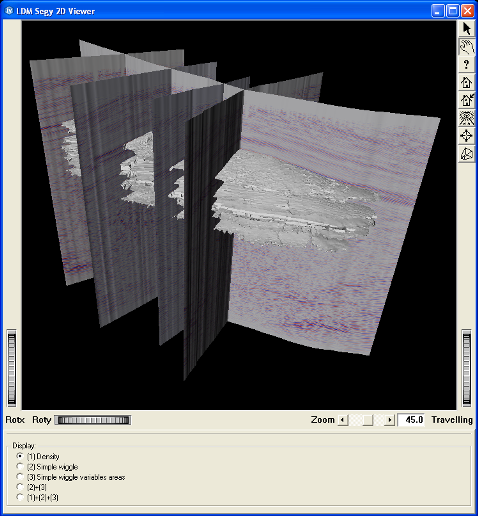

SCREENSHOT:
